Spring channel Nuts Strut Support Systems
PS Brothers India

PIPE CLAMPS


  AVAILABILITY OF MATERIALS :
The Pipe Clamps are also available in SS304 and SS316 grades in bright finish
Finishes available: Zinc plated, Yellow passivation, Hot dip galvanized



The Chilly Intello TECH Pipe Support Clamps are available for all pipe sizes. Moreover the intelligent technology backed  lock bolts make it possible that the clamp action is functional even in the varying pipe diameters to perfection.

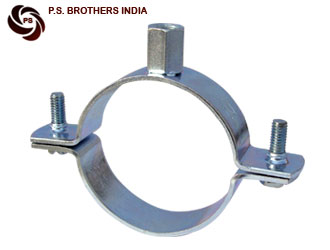

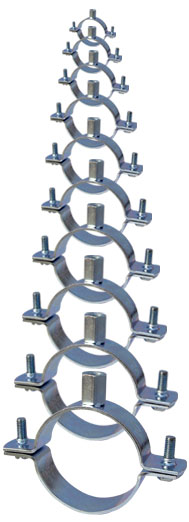

PIPE CLAMPS WITHOUT RUBBER PIPE CLAMPS WITHOUT RUBBER
PIPE CLAMPS WITHOUT RUBBER

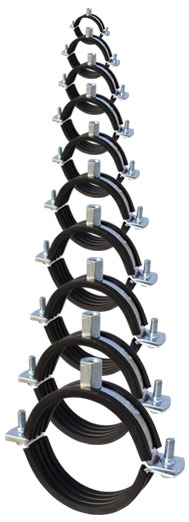

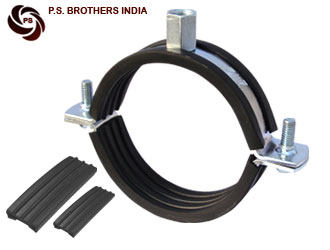

PIPE CLAMPS WITH RUBBER
PIPE CLAMPS WITH RUBBER

PIPE CLAMPS WITHOUT RUBBER

PIPE CLAMPS WITH RUBBER

PIPE CLAMPS WITH RUBBER



Clamp Measurements & Sizes
Part No. Clamping Range # mm Size
# inches
Width (w)
# mm
Thickness
# mm
PS210 20-25 1/2" 20 2
PS211 26-30 3/4" 20 2
PS212 32-36 1" 20 2
PS213 38-44 1  1/4" 20 2
PS214 47-51 1  1/2" 20 2
PS215 60-64 2" 20 2
PS216 74-80 2  1/2" 20 2
PS217 87-92 3" 20 2
PS218 113-118 4" 20 2
PS219 138-142 5" 20 2
PS220 160-167 6" 20 2
PS221 215-220 8" 20 2

PIPE CLAMPS RUBBER

PIPE CLAMPS RUBBER
