Spring channel Nuts Strut Support Systems
PS Brothers India

CHANNEL NUTS, SPRING NUTS


Material: The channel nuts are cold pressed, tapped so that their teeth will provide a "BITING" action into the in turned edges of channel sections. The nut bodies are designed with beveled end which lock into position by contact with interior side walls of channel when turned at 90 degree.

  AVAILABILITY OF MATERIALS :

The channel nuts are also available in SS304 and SS316 grades in bright finish
Finishes available:

   > Zinc plated
 > Yellow passivation
 > Hot dip galvanized

Case hardened channel nuts are also available.

Our products are produced as per the requirements of BS6946.

NO SPRING CHANNEL NUTS   SHORT / CONICAL SPRING CHANNEL NUTS

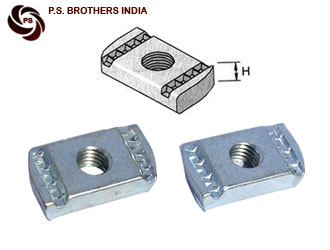

NO SPRING CHANNEL NUTS

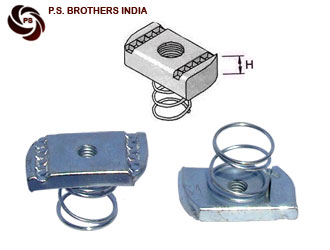

SHORT / CONICAL SPRING CHANNEL NUTS

Part No.

Size (MM) X (H) Part  No.

Size (inch) X (H)

PS101

M6 X 6 MM

PS107

1/4" X 1/4"

PS102

M8 X 6MM

PS108

5/16" X 5/16"

PS103

M10 X 8MM

PS109

 5/16" X 3/8"

PS104

M12 X 8MM

PS110

3/8" X 3/8"



PS111

1/2" X 3/8"

PS105

M12 X 10MM

PS112

1/2" X 1/2"

PS106

M16 X 12MM

PS113

5/8" to 7/8" X 3/8"



PS114

5/8" to 7/8" X 7/16"



PS115

5/8" to 7/8" X 1/2"



Part No.

Size (MM) X (H)

Part No.

Size (inch) X (H)

PS116

M6 X 6MM

PS121

1/4" X 1/4"

PS117

M8 X 6MM

PS122

5/16" X 5/16"

PS118

M/10 X 8MM

PS123

5/16" X 3/8"

PS119

M12 X 8MM

PS124

3/8" X 3/8"

PS120

M12 X 10MM

PS125

1/2" X 1/2"





PS126

1/2" X 3/8"




LONG SPRING CHANNEL NUTS   TOP SPRING CHANNEL NUTS

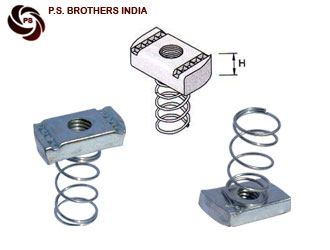

LONG SPRING CHANNEL NUTS

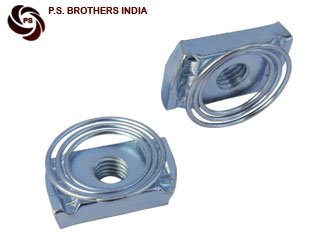

TOP SPRING CHANNEL NUTS

Part No.

Size MM X (H)

Part No.

Size (INCH) X (H)

PS127

M6 X 6MM

PS132

1/4" X 1/4"

PS128

M8 X 6MM

PS133

5/16" X 5/16"

PS129

M10 X 8MM

PS134

5/16" X 3/8"

PS130

M12 X 8MM

PS135

3/8" X 3/8"

PS131

M12 X 10MM

PS136

1/2" X 1/2"



PS137

5/8" to 7/8" X 3/8"



PS138

5/8" to 7/8" X 7/16"



PS139

5/8" to 7/8" X 1/2"



PS140

1/2" X 3/8"



Part No.

Size (MM) X (H)

Part No.

Size (INCH) X (H)

PS141

M6 X 6MM

PS146

1/4" X 1/4"

PS142

M8 X 6MM

PS147

5/16 X 5/16"

PS143

M10 X 8MM

PS148

5/16" X 3/8"

PS144

M12 X 8MM

PS149

3/8" X 3/8"

PS145

M12 X 10MM

PS150

1/2" X 1/2"





PS151

1/2" X 3/8"
