| CHANNEL CLAMPS |
 |
|
| |
| |
| |
AVAILABILITY OF MATERIALS
: |
 |
The channel Clamps
are also available in SS304 and SS316 grades
in bright finish |
|
|
Finishes available: Zinc
plated, Yellow passivation, Hot dip
galvanized |
|
| |
|
|
 |
|
 |
|
PURLIN CLIP |
|
MM |
UNC |
|
PS222 |
PS222 | |
|
|
WEDGE NUT M6, M8, M10, M12 |
|
MM |
UNC |
|
PS223 |
PS223 | |
|
|
|
|
|
|
|
|
|
|
|
 |
|
 |
|

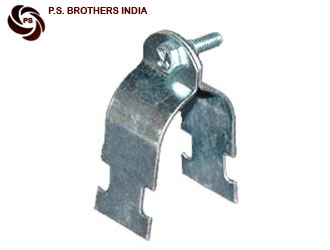

CHANNEL CABLE CLAMPS |
|
CHANNEL CABLE CLAMPS |
|
|
|
|
| Part No. |
[D]
mm |
Kg.
g |
|
PS224 |
8.7 - 10.7 |
35 |
|
PS225 |
10.3 - 12.7 |
37 |
|
PS226 |
11.9 - 13.5 |
38 |
|
PS227 |
13.5 - 14.3 |
39 |
|
PS228 |
14.3 - 16.7 |
40 |
|
PS229 |
15.9 - 18.3 |
41 |
|
PS230 |
18.3 - 20.6 |
45 |
|
PS231 |
19.0 - 21.4 |
47 |
|
PS232 |
21.4 - 25.4 |
49 |
|
PS233 |
25.4 - 27.8 |
53 |
|
PS234 |
27.0 - 30.2 |
64 |
|
PS235 |
30.2 - 33.8 |
72 |
|
PS236 |
31.8 - 35.9 |
72 |
|
PS237 |
34.9 - 39.7 |
79 |
|
PS238 |
39.7 - 42.9 |
84 |
|
PS239 |
42.9 - 46.8 |
90 |
|
PS240 |
46.8 - 50.8 |
128 |
|
PS241 |
48.4 - 52.4 |
131 |
|
PS242 |
52.4 - 58.7 |
137 |
|
PS243 |
58.7 - 63.5 |
150 |
|
PS244 |
63.5 - 68.3 |
160 |
|
PS245 |
68.3 - 73.0 |
164 |
|
PS246 |
73.0 - 79.4 |
171 |
|
PS247 |
76.2 - 82.6 |
175 | |
|
| Part No. |
[D]
mm |
Kg.
g |
|
PS248 |
82.6 -
88.1 |
189 |
|
PS249 |
88.1 -
95.2 |
203 |
|
PS250 |
95.2 -
100.0 |
219 |
|
PS251 |
100.0 -
106.4 |
273 |
|
PS252 |
106.4 -
111.1 |
286 |
|
PS253 |
111.1 -
120.7 |
296 |
|
PS254 |
120.7 -
129.4 |
318 |
|
PS255 |
129.4 -
138.1 |
343 |
|
PS256 |
138.1 -
149.2 |
376 |
|
PS257 |
149.2 -
161.9 |
410 |
|
PS258 |
161.9 -
174.6 |
423 |
|
PS259 |
174.6 -
182.6 |
466 |
|
PS260 |
182.6 -
190.5 |
491 |
|
PS261 |
190.5 -
203.2 |
501 |
|
PS262 |
203.2 -
212.7 |
505 |
|
PS263 |
212.7 -
225.4 |
524 |
|
PS264 |
225.4 -
238.1 |
555 |
|
PS265 |
238.1 -
250.8 |
576 |
|
PS266 |
250.8 -
263.5 |
592 |
|
PS267 |
263.5 -
276.2 |
624 |
|
PS268 |
276.2 -
288.9 |
654 |
|
PS269 |
288.9 -
301.6 |
679 |
|
PS270 |
301.6 -
314.3 |
699 |
|
PS271 |
314.3 -
327.0 |
175 | |
|
|
|
|
|
|
|
|
|
|
 |
